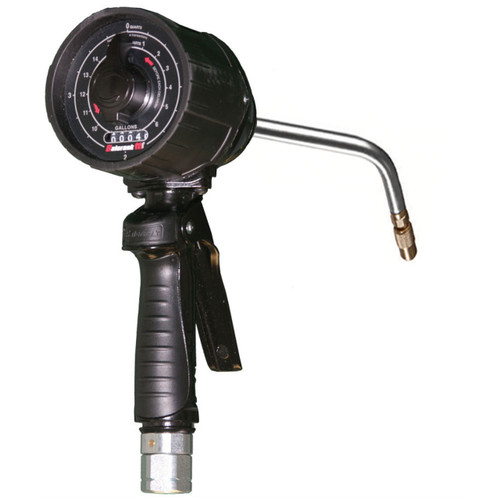

Balcrank Mechanical Registry (MR) Meter - Rigid - Manual 1/4 Turn Tip

The Balcrank mechanical-metered control valves have been specifically designed to measure and dispense fluids using improved technology and innovation. Balcrank manufactures a full range of rotary-piston mechanical meters, graduated in quarts, gallons or liters to cover the needs of production lines, filling engines, gear boxes and transmissions; or when dispensing lubricants in fleet service shops, off-road vehicles, mining, or marine equipment maintenance facilities.

Features

• Included swivel hose-end cover protects vehicle or machine surfaces from scratches
• Polycarbonate based integral register housing and single molded pointer knob will guarantee maximum integrity of the meter against drops and impacts
• One piece molded register housing gives extra protection against humidity
• One-piece molded pointer knob protrudes for easy resetting and reading, but is resistant to impacts
• A reset mechanism incorporates a safety clutch for integrity and can be turned backwards without damaging the meter
• Precision machining and tight tolerances maintains accuracy with no calibration necessary
• Meter accuracy is maintained across a broad viscosity range and/or extreme temperature variations
• Larger measuring chamber improves delivery rate up to 33% compared to other rotary-piston mechanical meters
• 5-digit totalizer keeps lifetime record of fluid dispensed
• Large ported swivel: for comfort even at high pressures, includes durable inlet filter which protects meter from debris
• Easy access fluid inlet screen included at swivel
• Trigger lock button: prevents accidental dispense and also allows the gun to be locked in the open position for high volume dispenses
• Cam & Piston valve optimized for superb control and minimum flow resistance
• Aluminum body with lightweight ergonomic soft grip handle for comfort and precision balance
• Unique 1/4 turn manual tip: effective and very fast, high flow, no splash and very easy to use

Specifications

• Flow Range: 0.5-8 gal/min (2-30 l/min)
• Max pressure: 1,450 psi (100 bar)
• Swivel inlet: 1/2 in. NPT(F) Swivel
• Dispense Nozzle OD: 0.705 in.
• Operating temp: 110°F to 160°F (-23°C to 70°C). Suitable for extreme temperature conditions
• Compatible fluids: Low to high viscosity lubricants, ATF, and Antifreeze (Glycol)
• Wetted materials: Aluminum, stainless steel, zinc alloy, Nitrile Rubber™, zinc plated steel, and brass
