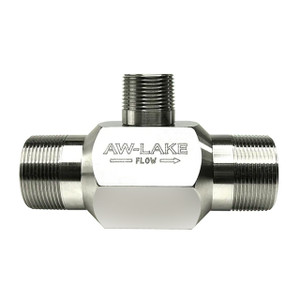

AW-Lake TN-2-50 Turbine Flow Meter 2 in. Male NPT - Stainless Steel, 50 Max GPM

Description

The TN Turbine Flow Meter is a cost effective turbine meter that can withstand the demands of the most rigorous flow measurement applications. It is ideal for light viscosity fluids like water, glycol, or solvents and can also provide liquid flow measurement on or off the oil field. Ideal for light viscosity fluids like water, glycol, or solvents, and able to withstand the demands of the most rigorous flow measurement applications.

Features

• Accuracy & Reliability: ±1% of reading
• Electronic Integration: This meter can accept a variety of existing electronics, including the EDGE sensor.
• Simplified Maintenance: Rotor replacement kit enables the rotor to be replaced in just 2-3 minutes.
• Rugged & Cost Effective: All stainless steel construction and tight machining tolerances make for excellent durability/long life.
• Compatible with Current Systems: Easy to install drop-in replacement of other brands of flow meters.

Specifications

• Brand: AW Lake
• Series: TN
• Port Size: 2 in.
• Type: Male NPT
• Flow Range (GPM): 5 to 50
• Flow Range (LPM): 18.93 to 189.93
• K-Factor: 870
• Pressure Rating (PSI): 5000
• Filtration (Mesh): 20
• Operating Temperature Range: -100°F up to 250°F (up to 850°F with special coil)
• Turndown: 10:1
• End Connections: NPT
• Weight (Lbs): 8
• Body Material: 316 stainless steel
• Rotor Material: 416 stainless steel (CD4MCu)
• Rotor Supports Material: 316 stainless steel
• Rotor Shaft Material: Tungsten carbide
• Sleeve Bearings Material: Tungsten carbide
• Repeatability: ±0.1% over full range
• Measuring Accuracy: ±1.0% over full range with 1cP fluid | ±2.0% for TN-0.5-3 and TN-10
