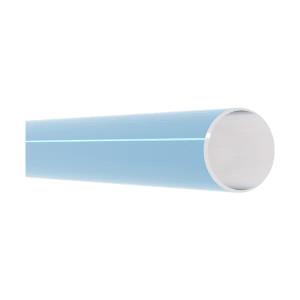

AST Aluminum Push to Connect Pipe 16 ft., 25 mm -Blue

AST's Push to Connect (PTC) tubing, colored blue, as one of the top tubing options in the industry. The tube is 25 mm in size and is a TruLink product. TruLink combines safety, reliability and ease of installation with the cutting edge material, engineering and manufacturing technology to ensure safety and peace of mind. The TruLink PTC tubing is manufactured from high quality, marine-grade aluminum to provide the industry's highest level of protection against tubing corrosion. Made in the USA, the TruLink tubing ensure minimal turbulance when fluids travel through the tube with high flow rate and minimal pressure loss. By utilizing aluminum, we guarantee a 30-55% weight reduction over traditional systems -making TruLink easy to install and modify. Also, aluminum is the best material choice for corrosion and rust resistance, so the system will remain operating at maximum efficiency for the duration of use.

Features

• PTC Tubing by TruLink is an all aluminum system
• Compatible with Common Groove Technology
• Deeper tubing engagements by 2x
• Leak-free gaurantee at 230 PSI
• Zero corrosion and rust for tubing
• Compliant with food grade standards
• Seven industry-leading, AST patented technologies
• 30-55% lighter weight than traditional systems
• Fitting sizes are clerly indicated on each casting
• Includes long radius and threaded elbows
• Made and assembled in the USA
• Each tubing is installation ready on delivery
• Lifetime warranty for all piping and tubing from AST

Specifications

• Pressure: 230 PSI
• Tubing Length: 16 ft.
• Extruded Aluminum: Aluminum 6063/AA6063-T5
• Chemical Composition: Si: 0.2 - 0.6 - Mg: 0.45 ÷ 0.9 - Fe: 0.35
• Designations: AA 6063 Alloy
• Surface Treatment: PPG Duracon Protective Coating
• Density: 2.7 g/cc - 0.0975 in/in3
• Electrical Resistivity at 68°F: 19 ohm-Cir. Mil/Foot
• Thermal Conductivity at 77°F: 209 W/m-k -1450 BTU-in/hr
• Expansion Coefficient: 23.4 um/m-°C / 13 uin/in-°F
• Heat Capacity: 0.9 J/g-°C / 0.215 BTU-in/ hr-ft2
• Ultimate Tensile Strength: 21,000 PSI
• Elasticity: 10,000 PSI
• Tensile Strength: 15,000 PSI
• Elongation Percentage: 8%
