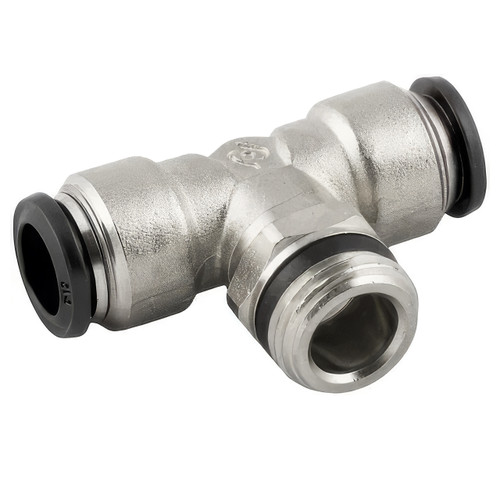

AIGNEP 50210N-8-1/2, 8 mm Push-To-Connect Fitting Tube x 1/2 in. Universal Branch Tee Swivel - Pack of 10

SKU:
AIG50210N812
Manufacturer:
AIGNEP
Size:
8 mm Push-To-Connect x Tee Swivel
Material:
Nickel Plated Brass
Product Type:
Tee Swivel
Box Quantity:
10
Seal Material:
Nitrile Rubber
Connection Type:
Push-To-Connect Fitting
Pressure:
250 PSI
Weight:
0.20 LBS
$48.20
Adding to cart… The item has been added

AIGNEP has their 50210N Series 8 mm Tube x 1/2 in. Universal Thread Swivel Branch Tee (50210N-8-1/2) as a top tier branch tee. This 8 mm tube x 1/2 in. thread swivel branch tee is built with the SWIFT-FIT technology, keeping leaks out of your threads. The port size can easily be identified by the thread pitch. Shop the JME site for the best selection of AIGNEP swivel branch tees today.

Features

  • Quick to install.
  • Easy for connecting and disconnecting.
  • Reusable over and over again.
  • Corrosion resistant technology.
  • There is a color coded tube identification.

Specifications

  • Diameter: 8 mm.
  • Length: 1 7/9 in.
  • Weight: 0.2 lb.
  • Thread Type: Universal
  • Thread Seal: NBR 70
  • Tube Material Compatibility: Nylon, Polyethylene, Polyurethane, Copper
  • Type: Push-To-Connect Fittings
  • Body Material: Nickel Plated Brass
  • Thrust Ring Material: Nickel Plated Brass
  • Pressure Rating: 250 PSI
  • Lip Seal: NBR 70
  • Gripper Collet Material: Stainless Steel
  • Temperature Rating: 0°F-160°F
  • Package Quantity: 10
  • Safety Ring Material: Technopolymer
  • Seal Type: Nitrile Rubber
  • Sleeve Material: Nickel Plated Brass
  • End Configuration: 8 mm Push-To-Connect Tube x 1/2 in. Universal Thread Swivel

Downloads

Specification Sheet (PDF Download)
