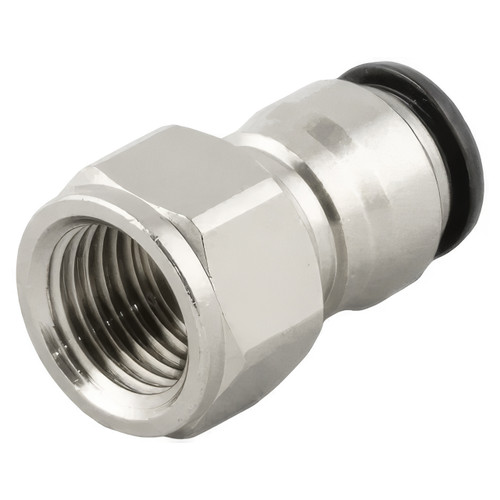

AIGNEP 50030N-4-M5, 4 mm Push-To-Connect x M5 Straight Female Fitting, BSPP

AIGNEP 50030N-4-M5, 4 mm Push-To-Connect x M5 Straight Female Fitting, BSPP

SKU:
AIG50030N4M5
Manufacturer:
AIGNEP
Size:
4 mm
Material:
Nickel Plated Brass
Product Type:
Straight Female Fitting
Pressure:
290 PSI
Seal Material:
Nitrile Rubber
Connection Type:
Straight Female BSPP Fitting
Weight:
0.20 LBS
$1.69
Adding to cart… The item has been added

AIGNEP has their SWIFTFIT 50030N Series M5 Straight Female BSPP Fitting (50030N-4-M5) as a top tier universal thread. This 4 mm tube x M5 BSPP thread is built with the SWIFT-FIT technology, keeping leaks out of your threads. The port size can easily be identified by the thread pitch. Shop the JME site for the best selection of AIGNEP straight female threads today.

Features

  • The 303 Stainless Steel gripper ensures a certified tight clamp.
  • The secure connection between tube and fitting holds up under severe conditions like impact and vibrations.
  • The molded seal creates a tight vacuum.
  • The safety ring allows for full rotation without losing the tight seal.

Specifications

  • Diameter: 4 mm.
  • End Configuration: 4 mm Push-In Fitting x M5 Straight Female BSPP Fitting
  • Thread Size: 1/2 in.
  • Thread Type: UNF
  • Weight: 0.2 lb.
  • Package Quantity: Each
  • Type: Push Connect Straight Female
  • Material: Nickel Plated Brass
  • Temperature Rating: -4° to 176°F
  • Minimum Burst Pressure: 870 PSI
  • Vacuum Pressure: 290 PSI
  • Connection Type: BSPP Female
  • Applications: Compressed air, vacuum, water

Downloads

Specification Sheet (PDF Download)
