OPW 1700 ES Series 2 in. Aluminum Couplers

SKU:
N/A
Manufacturer:
Size:
2 in.
Material:
Aluminum
Type:
Straight
Weight:
3.00 LBS
Please Choose An Option To See Price
$539.10
OPW 1700 ES Series 2 in. Aluminum Couplers

OPW 1700 ES Series 2 in. Aluminum Couplers

SKU:
N/A
Manufacturer:
Size:
2 in.
Material:
Aluminum
Type:
Straight
Weight:
3.00 LBS
$539.10
OPW Transport Series Dry Disconnect Couplings are used on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit when clearance is an issue.

Features

  • Spill Protection – Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous liquids.
  • Provides For Total Closed-Loop Loading Capabilities – Keeps hazardous liquids and vapors in-line and out of the environment.
  • Dual Protection – Poppeted seal cylinder design provides automatic closure from both directions – the coupler and the adaptor – to avoid accidental spills.
  • Ease of Use – Built-in elbow swivel and simple connection and disconnection design provides freedom of movement and smooth operation.

Video

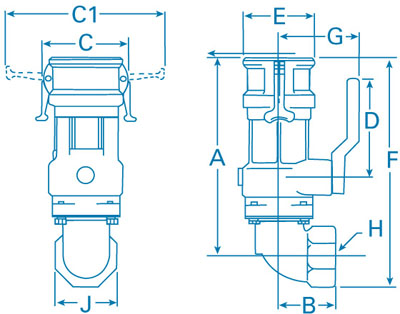

Dimensions


Size In Inches (Nominal) 2"
A Top of body to centerline of elbow 9-9/16"
B Centerline of elbow to end of elbow 2-3/4"
C Distance across cam arms when closed 4-3/8"
C1 Distance across cam arms when open 8"
D Centerline of stem to end of handle 4-5/8"
E Diameter of coupler end 3-33/64"
F Length of unit 11-3/16"
G Centerline of coupler to outside of handle 3-5/8"
H Pipe thread (NPT) 2"
J Distance across flats of octagon 3"

Flow Chart

Kamvalok Operation
