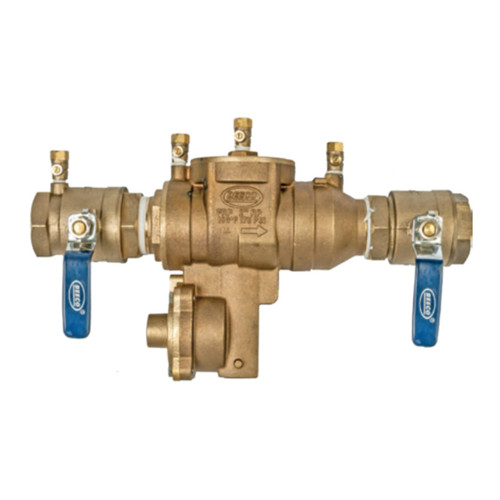

MIFAB BEECO FRP.75-QT-LL 3/4 in. FRP Small Reduced Pressure Zone Backflow Assembly - Low Lead

MIFAB BEECO FRP.75-QT-LL 3/4 in. FRP Small Reduced Pressure Zone Backflow Assembly - Low Lead

The BEECO® Friendly Reduced Pressure Zone Backflow Preventer is engineered to prevent the reverse flow of liquids into potable water systems. Proper installation by a certified expert, adhering to local codes and guidelines, ensures the protection of drinking water systems. This valve is certified to ASSE 1013, CSA B64.4, and listed with IAPMO.

Note: The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Features

• Repairable Positive Seating Check Modules: Includes two modules with captured springs and rubber seat discs.
• Single Screwed Cover: Allows easy access to all internal check components for quick servicing.
• Serviceable Relief Valve: Equipped with a replaceable relief valve for in-line repair and replacement.
• Easy Check Removal: Unique thumb screw design for simple removal of the check with pliers, reducing part breakage.
• Quick Access: Single threaded cover provides the fastest access in the industry.
• Lead-Free: Wetted surfaces contain less than 0.25% lead by weight.

Specifications

• Approvals: ASSE 1013-2021, CSA B64.4-2011 (R2016), IAPMO listed
• Hydrostatic Test Pressure: 350 PSI
• Maximum Working Pressure: 175 PSI
• Size: 3/4 in.
• Temperature Range: 33°F – 180°F
